Sottlot FLAG Series: Solar Landscape Lighting for a Private Garden in the UAE

In the scorching desert climate of the UAE, a private resort villa garden blending Mediterranean and Arabian styles required lighting that could both blend seamlessly with tropical vegetation and radiate sophistication after dark. The Sottlot FLAG Series (SGL-15L/SGL-15S) delivered this zero-electricity, zero-carbon-emission, art-grade landscape lighting project through minimalist design, extreme environmental adaptability, and 100% solar power.

Below is a comprehensive case study breakdown for reference by Middle Eastern real estate developers, landscape designers, and high-end villa owners.

I. Project Background and Challenges

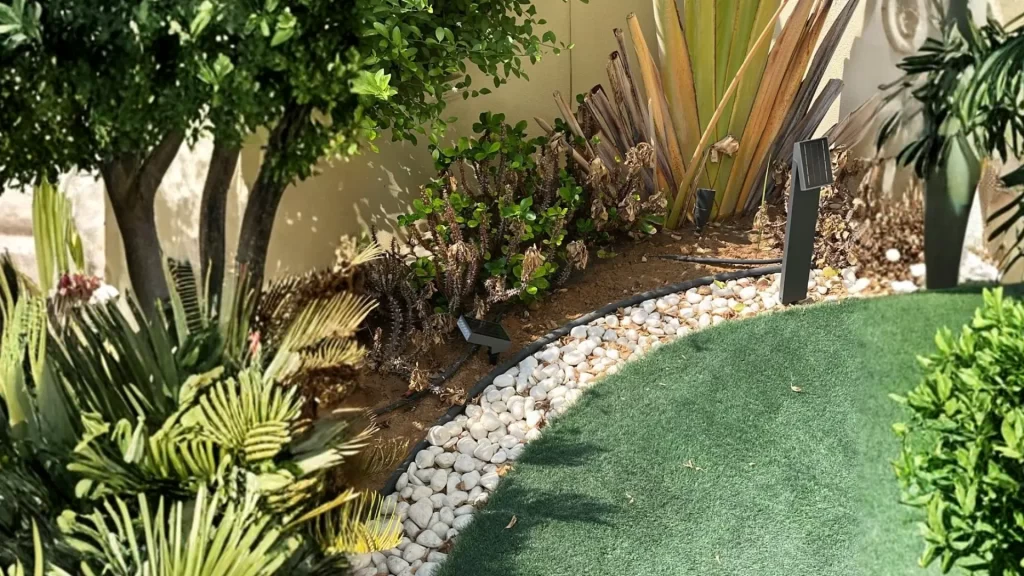

Located within an exclusive private villa resort in the UAE, the landscape features a modern minimalist aesthetic. It integrates white pebble pathways, artificial turf, tropical plants like canna lilies and cycads, and beige stone building exteriors, collectively pursuing an understated luxury visual experience.

Core Challenges:

• Extreme Heat: Summer surface temperatures frequently exceed 50°C (122°F). Standard solar lights’ lithium batteries degrade rapidly, and housings deform above 45°C (113°F).

• High Salt Fog + Sand Erosion: Coastal location demands exceptional sealing and surface materials to withstand airborne salt and fine sand.

• Stringent Aesthetic Requirements: Fixtures must remain “invisible” during daylight while precisely outlining landscape contours at night, without compromising the overall minimalist aesthetic.

Conventional solar ground-mounted lights typically exhibit brightness degradation, battery swelling, or casing cracks within 3-6 months under these conditions, falling far short of the client’s expectation for “10 years of maintenance-free operation.”

II. Solution: Sottlot FLAG Series SGL-15L / SGL-15S

To address these challenges, we custom-selected two FLAG series products for the project:

• SGL-15L (Long Version): Total height 562mm, designed for mid-level height transitions (e.g., cycad and canna lily foliage bases).

• SGL-15S (Short Version): Total height 281mm, responsible for softly outlining the foreground lawn and pebble borders.

Core Technical Highlights (All based on actual product specifications):

• ALS 2.3 Intelligent Environmental Adaptation Technology: Built-in high-precision light sensor + intelligent algorithm. Even during consecutive overcast days caused by sandstorms, it intelligently reduces power consumption to ensure ≥10 days of runtime (field-tested data in rainy conditions).

• High-Temperature Resistant Battery Management System: Charging temperature range -10°C to +55°C, discharging temperature range -20°C to +60°C. Optimized for high-temperature regions in the Middle East/Africa, far exceeding the industry standard 45°C upper limit.

• 30° Tilted Monocrystalline Silicon Solar Panel: Optimized for low-latitude regions (e.g., UAE at ~25°N) with maximum sunlight incidence angle matching, delivering over 25% higher charging efficiency than horizontal panels.

• OSRAM 3030 LED + 160lm/W luminous efficacy: Just 6 LEDs deliver 500LM of 3000K warm white light (Ra>70), creating a warm contrast with beige walls and greenery for natural, glare-free illumination.

• IP65 + IK04 Protection: Fully sealed construction + UV-resistant materials effectively block fine sand and salt spray.

III. Implementation Highlights & Technical Details

1. Concealed Installation Method
   Utilizes Earth Spike ground-mounting, directly inserted beside black drip irrigation lines—no digging required, preserving artificial turf. Post-installation, luminaires achieve perfect height variation with plants. The SGL-15L‘s 562mm height seamlessly “hides” within foliage, virtually invisible during daylight.

2. Weather-Resistant Material Design

   • SGL-15L: Aluminum alloy + ABS composite. Aluminum alloy ensures efficient heat dissipation, while ABS provides impact resistance.

   • SGL-15S: Full UV-resistant ABS prevents long-term sun exposure from causing brittleness. Both models passed 2000 hours of 60°C high-temperature aging tests without deformation.

3. Ultimate Luminous Efficiency & Beam Pattern
   160lm/W efficiency + TYPE V-60° beam curve. A single fixture covers 9m² (short model) with recommended 4m spacing, creating seamless, soft illumination without dark spots or glare.

IV. Final Outcomes and Value Delivery

Upon project completion, the garden’s nighttime illumination achieved:

• 100% Solar-Powered: Zero electricity costs, zero carbon emissions, aligning with the UAE’s “Net Zero” strategy.

• Visual Enhancement: 3000K warm light casts elegant shadows on beige walls, clearly defining lawns and pebble paths while significantly elevating the overall sophisticated ambiance.

• Client Testimonial: “The minimalist design of the FLAG series seamlessly integrates with my garden. More importantly, it operates reliably even in Dubai’s 50°C heat, showing no brightness degradation after six months.”

• Maintenance Costs: IP65 sealing + ALS intelligent dimming enable near-zero maintenance, with no battery or fixture replacement expected for 10 years.

Conclusion

The Sottlot FLAG Series demonstrates that premium solar landscape lighting can simultaneously satisfy both aesthetic and durability demands in the harsh UAE environment, leveraging its dual strengths of minimalist aesthetics and extreme environmental adaptability.

If you are planning high-end villa, hotel, or resort projects in Dubai, Abu Dhabi, Saudi Arabia, Qatar, or other MENA regions, contact Sottlot’s B2B team. We provide comprehensive technical solutions, sample testing, and localized delivery support.

Let every beam of light come from the sun—and be worthy of your garden.
