UK Modern Home Solar Wall Lighting Upgrade for Entryways

In the UK’s temperate maritime climate, short winter daylight hours and frequent overcast conditions make traditional grid-powered lighting retrofits costly, disruptive to walls, and challenging to maintain. The Sottlot CUBE SWL-24 addresses these pain points for high-end residential entryway lighting with its “zero wiring, minimalist design, and long-lasting performance.” This article provides a detailed case study, dissecting the product technology, installation process, and value delivery to offer replicable green lighting solutions for architects, landscape contractors, and property developers.

1. Project Overview

Located in a modern German-style residence in the UK, the owner sought to upgrade the entrance door area lighting. The goal was to maintain the overall aesthetic of the refined light-colored brick walls and wooden latticework while achieving smart, secure lighting. The core challenge was achieving a wiring-free installation on already finished walls while addressing the UK’s typical rainy and low-light environment.
The Sottlot CUBE SWL-24 (hereafter SWL-24) was selected. This fixture combines a monocrystalline silicon solar panel with the ALS 2.4 smart management system, ensuring stable operation even after 10 consecutive days of rain—perfectly suited for the UK climate. After installation, the lights blend seamlessly with the architecture during the day while precisely outlining the entryway at night, enhancing both security and nocturnal aesthetics.

2. Pain Points and Challenges

Four common pain points in UK residential entryway lighting retrofits:

Climate Adaptability: With annual sunshine below 1,400 hours and prolonged winter gloom, conventional solar lights often “shut down” due to insufficient charging.
Architectural Aesthetic Compatibility: Light-colored brick walls, wooden latticework, and metal door frames demand minimalist fixtures free of cheap plastic aesthetics.
Construction Constraints: Existing finished walls prohibit wall-breaking wiring. Traditional mains-powered solutions are costly, time-consuming, and highly disruptive.
Lighting Requirements: Must balance “warm ambient lighting” with “high-brightness safety detection,” while preventing glare and eye strain.

Traditional outdoor fixtures struggle to meet all four criteria, whereas the SWL-24 specifically addresses every challenge.

3. Product Solution: Why Choose CUBE SWL-24?

3.1 Core Technical Specifications (Based on Official Spec Sheet V3)

Solar Panel: Monocrystalline silicon (high conversion efficiency, maintains strong charging performance even on cloudy days).
Battery: Lithium-ion battery, charging time approximately 7 hours.
Luminous Flux: 1000 Lumens, efficiency 160lm/W, 4000K natural color temperature (Ra>70), blending technological sophistication with warm ambiance.
Anti-Glare Design: Uniform, soft light distribution without harsh hotspots.
Core Technology: ALS 2.4 Intelligent Management System—dynamically optimizes discharge strategy by monitoring ambient light and battery status in real-time, supporting continuous operation through 10 consecutive rainy days.
Protection & Weather Resistance: IP44 waterproof/dustproof, IK04 impact-resistant, operating temperature -20°C to +60°C, fully withstands UK extreme weather.

3.2 Four Flexible Lighting Modes (One-Touch Switching)

M1: 25% constant illumination until dawn (ideal for areas requiring basic lighting).
M2 (Highly Recommended): 10% soft glow + PIR sensor (triggers 100% brightness for 30 seconds), perfectly balancing energy efficiency and security.
M3: Pure PIR sensing (0% constant off), maximizes battery life.
M4: 100% constant brightness (for temporary high-light needs).

Switch modes with a short press of the silicone button; power on/off with a 1.5-second long press—ultra-simple operation.

4. Installation Highlights: From “Light Fixture Installation” to “Architectural Accent”

The installation process requires only 4 steps (screw kit included with the light):

Position at 2.5m installation height;
Secure the bracket;
Hang the light body;
Adjust the angle.

The entire process takes less than 5 minutes, requiring no electrician, no conduit installation, and no wall damage.

Material Craftsmanship: High-strength ABS + PS shell with a refined surface texture seamlessly integrates with modern brick walls and wooden grilles.
Dual Visual Identity:

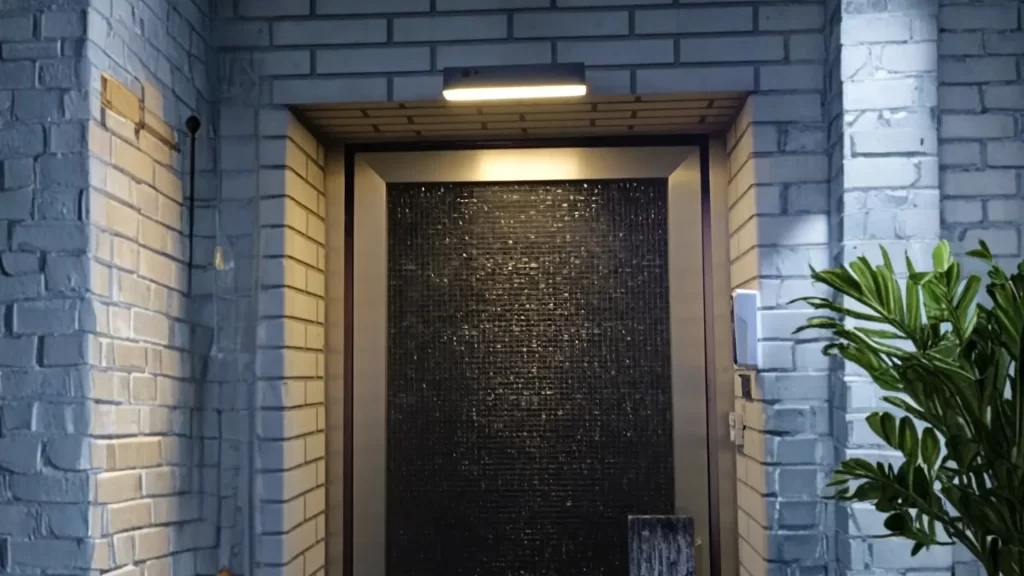

- Daytime: The sleek, dark gray elongated shell blends discreetly with architectural lines.
- Nighttime: Precise downward illumination, combined with grid glass refraction, creates delicate light patterns for an artistic ambiance.

5. Final Outcomes and Value Delivery

Energy Efficiency: 100% solar-powered, zero electricity costs, compliant with UK green building energy standards.
Safety Enhancement: PIR sensor with 120° field of view and 5m detection range illuminates visitors promptly, significantly boosting psychological security.
Durability: Field-tested in UK rain and cold snaps, ALS 2.4 technology ensures >10 days of operation during overcast/rainy conditions.
Aesthetic Value: Transforms entryways from “dark and gloomy” to “warm and secure” modern entrances, elevating overall property prestige.

6. Conclusion

The CUBE SWL-24 is not just a solar wall light—it’s a premium residential lighting retrofit solution featuring “lightweight, zero-impact, and high adaptability.” It truly achieves architectural-grade lighting that is “invisible by day, stunning by night.”
Choosing SWL-24 means selecting a reliable UK climate-adapted solution and sustainable architectural aesthetics. Architects, contractors, and developers are welcome to discuss more implementation cases!
